Steel mesh pad & rubber vibration isolator

For different customer applications, we provide various types of vibration isolators, including all-metal materials, steel mesh pads, rubber, polyurethane and other special materials. The application of composite materials provides optimized solutions for customers' vibration isolation needs.


All Metal Vibration Isolator




Features:
● Elastic elements include 18/8 stainless steel elastic pad, coil spring or combination of elastic pad and coil spring;
● The common feature of all-metal spring parts is that they have extremely long service life and can withstand extreme temperature;
● In addition, they do not creep under load, even after years of use under harsh conditions.
Performance:
● Very good mechanical characteristics, especially the ability to withstand extremely high loads;
● Progressive static stiffness, providing the same pair of fixed natural frequencies over a wide range of loads;
● Excellent resistance to grease, oil, solvent, water, dust and chemical agents.


Wire Mesh Cushion Shock Absorber



Features:
● Metal elastic elements made of 18/8 steel mesh. The elastic stiffness increases in a wide load range with a fixed natural frequency;
● The element does not creep with excellent resistance to oil, solvent, water, chemical agents and extreme temperature.
● Load Range: 25-250Kg
● Natural Frequency: 12-15HZ
● Temperature range: -90°C to +300°C

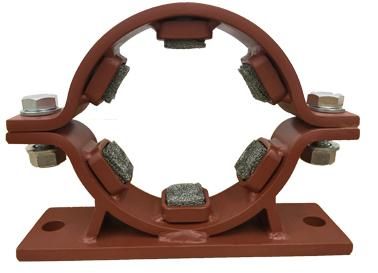

Anti-Vibration Pipe Clamp



Features:
● Very hard structural parts, allowing rapid disassembly and assembly of pipelines;
● Elastic elements will not creep with excellent resistance to oil, grease and corrosive agents so can be used in extreme environments.

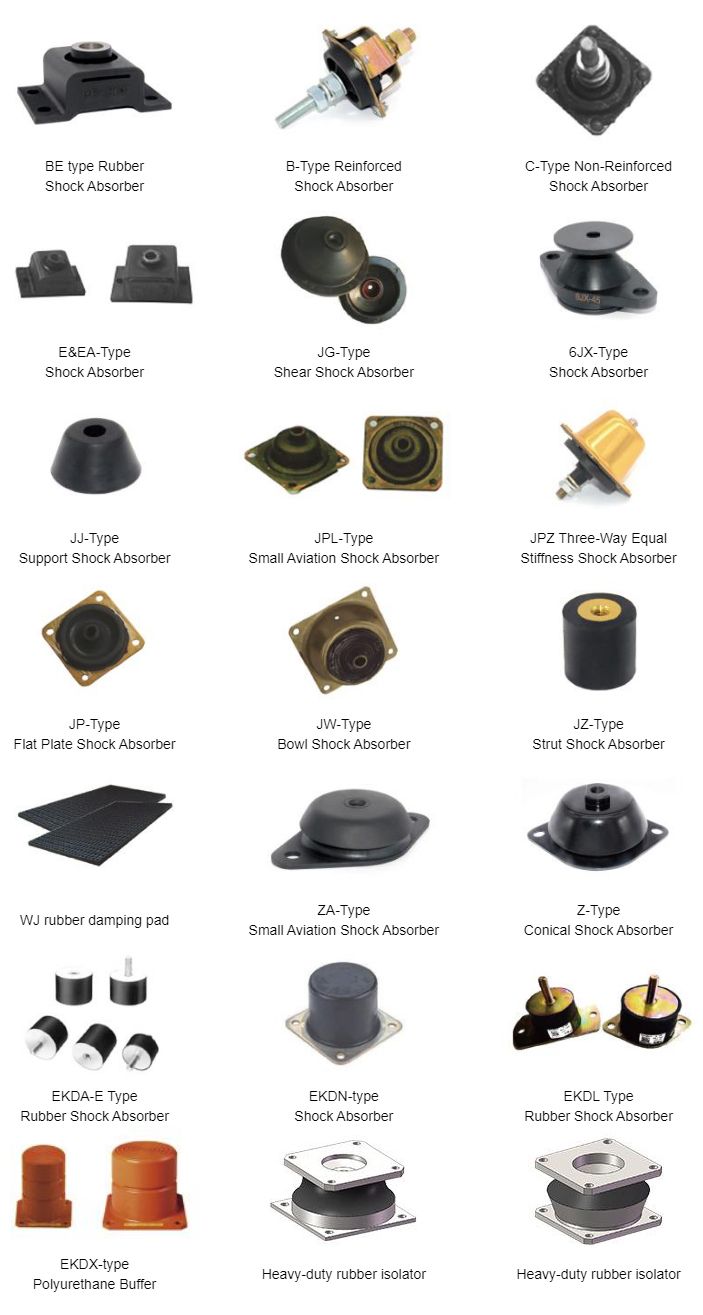

Rubber Vibration Isolator
